功能参数
窗口显示：双层四位、实际值和设定值同时显示、输出功率条码显示
其它功能：断电保护、二路报警
工作时间：大于20000小时
配套使用：与变送器配套可实现压力控制、控制精度可达±1kg
兼容性：完全替换Dynisco产品
操作简单化：
①开机直接进入手动状态；
②点按转换键可直接设置控制压力；
③按增加键可直接增加输出功率；
④手动/自动无扰动切换；
⑤自动状态条码直观显示输出功率；
⑥具有输出功率及单一输出功率限幅；
⑦具有输出功率及单一输出功率限幅。

技术指标
数字显示：双层四位。上层压力显示，下层温度显示；
内分辨率：32000
外分辨率：
压力： 0.01MPa、0.02MPa、0.05MPa面板切换(断电保护设置≥40年)
温度：0.1℃、0.2℃、0.5℃、1℃；
非线性：0.5%±1个字、0.2%±1个字、0.1%±1个字、0.05%±1个字。
报警设置：
压力上限：0～99.99Mpa
温度上限：0～408℃(或满量程)
PID输出：4-20mA、0-10V、1-5V、0-10mA、0-20mA(可选)
继电器额定值：250VAC、5A
使用环境：-10～+50℃、80%RH
电源：85～265VAC
连续工作时间：长期
开口及安装尺寸：90×90×110mm、45×45×110mm、45×90×110mm、90×45×110mm

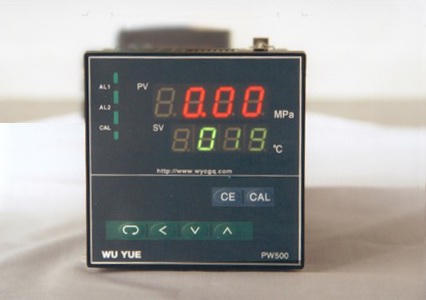

PW series of intelligent temp and pressure digital instruments are the products of our company. We are the initial designers and vendors of the double-function digital instruments. PW series consist of PW300, PW300dual, PW600, PW800 and PW900. They incorporate the advantages of the same products from foreign countries in 1990s, as well as new features are added. Actually, they are quite suitable for measurement and control at one point for temp and pressure. PW series are good-looking and of excellent EMC performance.

New features:

• Two-layer digital LEDs with four-bit for each layer display actual pressure value and temp value;
• Pressure and temp alarms can be easily set;
• The output can be generated by relay, voltage pulse or silicon via constant voltage or constant current;
• System operation is controlled by the key panel;
• Calibration can be easily completed just by pressing CAL key on the key panel.

Three new technical methods are introduced to enhance the EMC performance:

• Photoelectric modules insulate the microprocessor from input and output interface;
• New anti-jamming methods are used in the system program;
• A hardware monitor runs all the time, which can reset the system to normal operation from abnormal operation after distortion.
• Easy operation
• Enter manual mode after system start;
• Press ‘Switch’ key to directly configure the set pressure value;
• Press ‘+’ key to increase output power;
• Automatic switch between manual and automatic mode;
• A row of LEDs to display output power;
• Output voltage can be litmited.
