  PT系列高温熔体压力传感器变送器
Series PT High Temperature Melt Pressure Transducers and Transmitters

　　该产品通过十多年的研制并不断的改进，从1998年3月开始采用自主研制的新型膜片，使高温溶体压力传感器的温漂大幅下降，并可在强酸碱环境中使用。比原产品在使用寿命上延长5～10倍，并继续保持国内领先，达到国际同类水平。现已大批量出口欧洲及北美洲等30多个国家。
　　PT系列高温熔体压力传感器适用于化纤、塑料、橡胶、石化等高温熔体压力或其它耐高温的流体压力的测量和控制。我公司吸收了国外同类产品先进技术，采用进口原材料和关键元器件组织生产，具有工作稳定、性能可靠、准确度高、输出信号大、动态性能好、耐高温零点漂移小等优点。PT系列传感器与本厂的PW系列仪表配套使用能满足不同用户的各种要求，也可直接与进口仪表（如:DYNISCO）配套使用，不需做任何调整或改动，连接螺纹、引出接插件等全部兼容。
　　Through over ten years'development and consistent improvement, this kind of product can make temperature excursion of high temperature melt pressure transducers reduced greatly and can be used in strong acid and alkaline environment , since a new film invented independently has been equipped from March 1998. Moreover ,the life of this kind of product has been prolonged five to ten times than the original one. With keeping ahead in home and reaching international standards of a kind, a large quantities of these products have been exported to over thirty countries in Europe and North America.
　　Series PT of high temperature Melt Pressure Transducers are suit to measuring and controlling the pressure of some high temperature melts－such as chemical fibre, plastic, rubber and petrifaction－or other overproof liquids. This company ,which draws on the advanced technology from aboard and manufactures with imported materials and key apparatus, provides its products with stable work, credible capability, high accuracy, large outputted signal, good dynamic capability, small overproof zero temperature-excursion and other merits. Series PT can meet various consumers worked with our Series PW gauges and other imported gauges immediately, which can be compatible with annectent threads and plugs entirely without any adjustment or modification.

技术指标 TECHNICAL INDEX
额定量程：0～150MPa(国标任选，150MPa以上可定做)
测量精度：0.5%FS、1.0％FS、1.5％FS(任选)
主要用途：熔体、流体、气体
最高温度：538℃
螺纹尺寸：M14、M22、1/2"等(国标任选)
直杆/软管：0～600/0～3000(mm)
工作环境：-10～50℃；80％RH
零点温漂：≤0.1MPa/100℃
Rated Operating Pressure Ranges : 0～150MPa(choose national standard discretionarily and have it made to order when the pressure is over 150MPa)
Accuracy：0.5%FS,1.0％FS,1.5％FS(choose discretionarily)
Suitable for melts, fluids and gases
Tiptop Temperature：538℃
Threads size：M14、M22、1/2"etc(choose national standard discretionarily)
Pole/Tube：0～600/0～3000(mm)
Work Condition：-10～50℃,80％RH
Zero Temperature-Eexcursion：≤0.1MPa/100℃

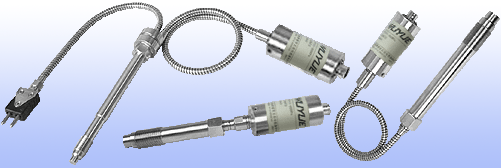

㈠、高温熔体压力传感器－经济型
High Temperature Melt Pressure Transducers - Economical Type
　　经济型压力传感器及变送器使用于塑料挤出行业压力测量，与我公司的PS系列智能数字压力表配套使用可实现压力的测量与控制，变送器系列采用24V直流供电，输出标准信号便于计算机采集。该系列产品为国内广泛使用的优势在于压力测量准确可靠，性价比高。
　　The economical kinds of pressure transducers and transmitters are suitable for pressure measurement for plastic extruding industries. They can succeed in measuring and controlling pressure with our Series PS intelligent digital pressure gauges. Power supply of these series of transmitters relies on 24V direct current, which make normal signal easy to gather by computer. The series of product are used widely in home, whose predominance lies on high accuracy of pressure measurement and high performance-to-price.

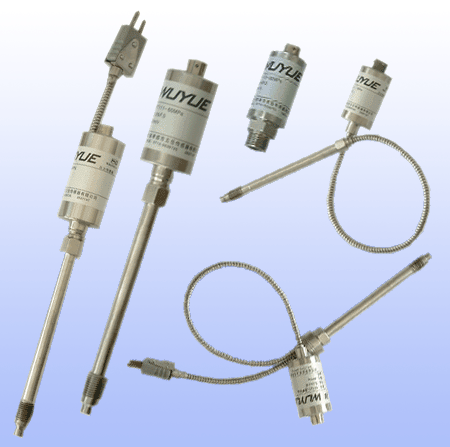

㈡、高温熔体压力传感器－防爆型
High Temperature Melt Pressure Transducers - Blastproof Type
 　　该系列产品主要用于易燃易爆等危险场合下高温熔体压力的测量。该产品集防腐耐磨及低温漂高精度等高性能于一身。具有极好的抗干扰性。性能指标达到了世界同类产品。现已出口欧、美等30多个国家。
　　These series of products can mainly be applied to measuring pressure of high temperature melts on some combustible and explosive occasion .With rotproof ,wearable and low temperature excursion capability ,they possesse well interference-free speciality. Their performance reaches international level of a kind, which have been exported to over thirty countries in Europe and North America.

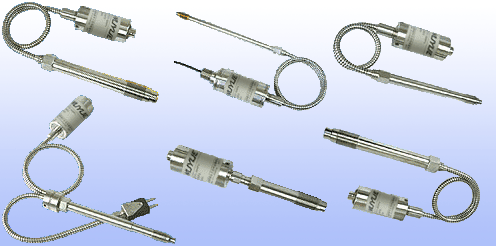

㈢、高温熔体压力传感器－防腐耐磨型
High Temperature Melt Pressure Transducers - Rotproof and Wearable Type
 　　防腐耐磨型压力传感器及变送器使用于塑料、化纤、石化等各种特殊场合的压力测量，与我公司的PW系列智能数字压力表配套使用可实现压力的测量与控制，变送器系列采用24V直流供电，输出标准信号便于计算机采集。该系列产品是我公司在国内唯一一家采用美国技术在膜片及螺纹上附着各种特殊涂层、涂氟化物膜片的高温熔体传感变送器。从而大大提高传感变送器的耐磨性及耐酸碱性，延长使用寿命。
　The rotproof and wearable kinds of pressure transducers and transmitters are suitable for pressure measurement on various occations of chemical fibre, plastic, rubber and petrifaction . They can succeed in measuring and controlling pressure with our Series PW intelligent digital pressure gauges. Power supply of these series of transmitters relies on 24V direct current, which make outputted normal signal easy to gather by computer. These series of products are the high temperature melt pressure transmitters smeared various special coats and fluorids on films and threads. This technology, which was American technology only used by this company, can improve rotproof and wearable speciality and prolong the life of melt pressure transmitters.

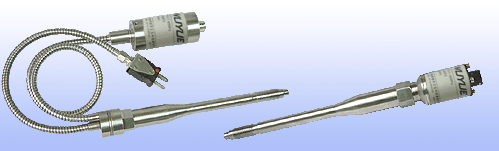

㈣、高温熔体压力传感器－低温漂高精度型
High Temperature Melt Pressure Transducers -Low Temperature-Excursion and High Precision Type
　　该系列产品主要用于要求精确数据的测量的各种场合。该产品采用特殊材料及合金弹性膜片，降低了温漂，提高了测量精度。性能指标达到了世界同类产品。现已出口欧、美等30多个国家。
　 These series of products can mainly be applied to various occasions on which high accuracy in data is requested . With special materials and alloyed elasticity film applied, these kinds of products can lower the temperature-excursion and improve the measuring precision. And Their performance has reached international level of a kind. They have been exported to over thirty countries in Europe and North America.

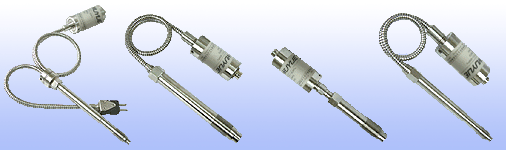

㈤、高温熔体压力传感器－550℃高温型
High Temperature Melt Pressure Transducers -550℃ High Temperature Type
　　该系列产品主要用于各种超高温熔体压力测量的场合下。该产品采用特殊的压力传递方式及使用特殊材质。测量介质温度从400℃提高到538℃。现已出口欧、美等30多个国家。
　　These series of products can mainly be applied to various occasions of pressure measurement of superhigh temperature melts. With special pressure transfer means and special materials applied, these kinds of products,which can improve temperature of measuring medium from 400℃ to 538℃, have been exported to over thirty countries in Europe and North America.

㈥、高温熔体压力传感器－环保型
High Temperature Melt Pressure Transducers - Environmental Protection Type
　　该系列产品广泛用于医药、食品加工、饮用水环境监测等各种与人们生活密切相关的场合。该产品采用特殊的压力传递介质。在使用过程中传感器膜片损坏的情况下，泻漏的压力传递介质对人体与环境无害。达到了卫生环保要求。环保指标达到了世界同类产品。现已出口欧、美等30多个国家。
　　These series of products can widely be applied to various occasions which is closely linked to people's life, such as medicament, food produced and drinking water monitored. On the occasion that sensor's film is impaired in use, the leaked pressure transfer medium is harmless to human and nature. These kinds of products whose performance has reached the standard of health environmental protection , up to the international level of a kind, has been exported to over thirty countries in Europe and North America.
